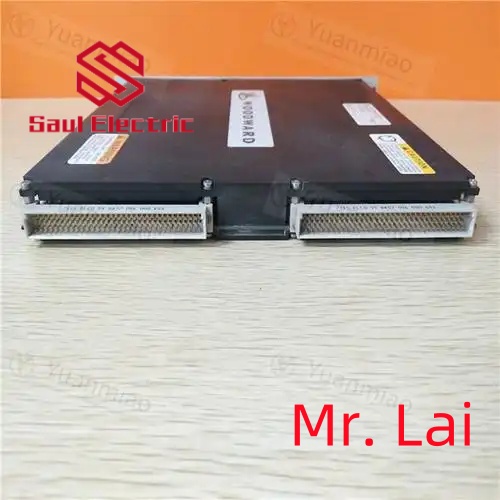

Woodward 5462-292 |CPU Module, Origin: United States
1.5462-292 Product Overview
The Woodward 5462-292 belongs to the 505/505E series digital turbine controllers. It is a microprocessor-based control module designed for single-valve steam turbines,
including single extraction/admission systems or split-range actuator configurations.
The controller features a front panel Operator Control Panel (OCP) with a two-line, 24-character display and multi-function keypad, allowing easy on-site configuration and monitoring.
contacts： Mike
+86 18350224834 （WeChat/WhatsApp）
Email：Mike18350224834@gmail.com
2. 5462-292 Technical Specifications and Parameters
| Parameter | Details |
|---|---|
| Power Supply | +24 VDC, approx. 1 A |
| I/O Outputs | Discrete Outputs: 8 Analog Outputs: 6 Actuator Outputs: 2 |
| Display / HMI | Two-line, 24-character LCD, with multi-function keypad |
| Dimensions | Approx. 14 × 11 × 4 in (35.6 × 27.9 × 10.2 cm) |
| Weight | Approx. 9.11 lbs (4.13 kg) |
| Operating Temperature | –4 to +140 °F (–20 to +60 °C) |
| Storage Temperature | –40 to +185 °F (–40 to +85 °C) |
| Humidity Standard | 95% RH at 20-55 °C for 48 hours without damage |
| Protection Class | Typically meets industrial dust and water protection standards |
| Communication Protocol | Supports Modbus, RS-232 / RS-422 serial interfaces |
3. Brand History
Woodward, Inc., founded in 1870 and headquartered in Fort Collins, Colorado, USA, is a global leader in energy control systems. The company has a long history of innovation in turbine control, engine management,
and power generation systems.
Woodward products are widely recognized for their reliability and precision in demanding industrial and power generation applications.
4. Applications in Industrial Automation
The 5462-292 plays a critical role in industrial automation and power generation environments:
- Steam Turbine Control: Manages startup, speed regulation, and extraction/admission control of steam turbines.
- Power Generation Systems: Used in power plants to regulate turbine-driven generators for stable frequency and load management.
- Compressor and Pump Drive Control: Ensures precise speed control for turbine-driven compressors and pumps.
- Process Industry Applications: Applied in chemical plants, refineries, and other industries requiring precise turbine operation.
- Safety and Protection Functions: Includes overspeed protection, critical speed avoidance, actuator travel limits, and event logging for operational safety.
We know that in order to charge a battery, the output voltage of the solar panel must be higher than the current voltage of the battery.
If the voltage of the solar panel is lower than that of the battery, the output current will approach zero. Moreover, the output of solar panels
is not fixed, but rather a curve that varies with various conditions such as radiation intensity and environmental temperature. Whether the
solar panel can always operate at the maximum value of the IV curve reflects the designer”s different levels and abilities.
The working parameters of traditional solar charging controllers are set, and they transfer the power of solar panels in a set parameter manner
(either constant voltage or constant current), without changing according to changes in the surrounding environment; However, the natural
environment such as solar radiation, surrounding temperature, and humidity are constantly changing; So, converting the energy of solar panels
in a fixed way can easily cause the battery to be constantly under charged, and on the other hand, it cannot fully utilize the solar panels during good
weather, resulting in waste.
